AVAYA IP OFFICE 4600 SERIES







Text Box: AVAYA 4601 IP $ CALL FOR PRICING G.711, G.729a/B Voice CODECs. * QoS Options of - UDP Port Selection, DiffServ and 802.1p/B (VLAN). * Single 10/100 BaseT Ethernet port. * Support for Simple Network management Protocol (SNMP). * Microsoft NetMeeting Compatible. * IP Address Assignment - DHCP Client or Statically Configured. * Downloadable firmware for future upgrades. Wall Mountable with included desk/wall mount stand. * Avaya Grey Color for all markets. The standards-based Avaya 4600 series IP telephones combine the quality and comprehensive features and functions you expect in high-level business phones with extras to keep your IP voice network performing at its best and delivering on your investment far into the future.

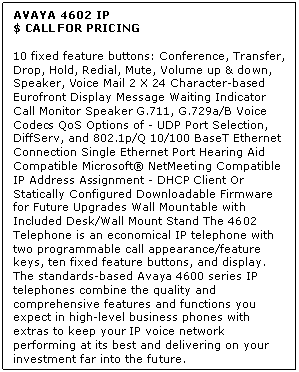

Text Box: AVAYA 4602 IP $ CALL FOR PRICING 10 fixed feature buttons: Conference, Transfer, Drop, Hold, Redial, Mute, Volume up & down, Speaker, Voice Mail 2 X 24 Character-based Eurofront Display Message Waiting Indicator Call Monitor Speaker G.711, G.729a/B Voice Codecs QoS Options of - UDP Port Selection, DiffServ, and 802.1p/Q 10/100 BaseT Ethernet Connection Single Ethernet Port Hearing Aid Compatible Microsoftฎ NetMeeting Compatible IP Address Assignment - DHCP Client Or Statically Configured Downloadable Firmware for Future Upgrades Wall Mountable with Included Desk/Wall Mount Stand The 4602 Telephone is an economical IP telephone with two programmable call appearance/feature keys, ten fixed feature buttons, and display. The standards-based Avaya 4600 series IP telephones combine the quality and comprehensive features and functions you expect in high-level business phones with extras to keep your IP voice network performing at its best and delivering on your investment far into the future.

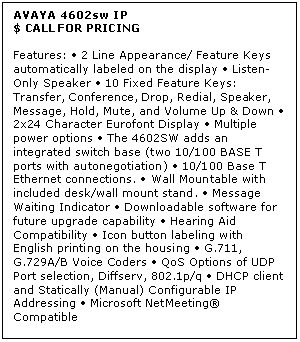

Text Box: AVAYA 4602sw IP $ CALL FOR PRICING Features: • 2 Line Appearance/ Feature Keys automatically labeled on the display • Listen-Only Speaker • 10 Fixed Feature Keys: Transfer, Conference, Drop, Redial, Speaker, Message, Hold, Mute, and Volume Up & Down • 2x24 Character Eurofont Display • Multiple power options • The 4602SW adds an integrated switch base (two 10/100 BASE T ports with autonegotiation) • 10/100 Base T Ethernet connections. • Wall Mountable with included desk/wall mount stand. • Message Waiting Indicator • Downloadable software for future upgrade capability • Hearing Aid Compatibility • Icon button labeling with English printing on the housing • G.711, G.729A/B Voice Coders • QoS Options of UDP Port selection, Diffserv, 802.1p/q • DHCP client and Statically (Manual) Configurable IP Addressing • Microsoft NetMeetingฎ Compatible

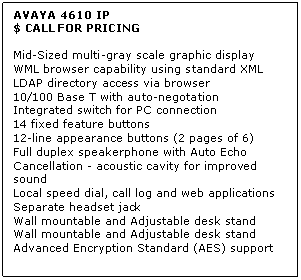

Text Box: AVAYA 4610 IP $ CALL FOR PRICING Mid-Sized multi-gray scale graphic display WML browser capability using standard XML LDAP directory access via browser 10/100 Base T with auto-negotation Integrated switch for PC connection 14 fixed feature buttons 12-line appearance buttons (2 pages of 6) Full duplex speakerphone with Auto Echo Cancellation - acoustic cavity for improved sound Local speed dial, call log and web applications Separate headset jack Wall mountable and Adjustable desk stand Wall mountable and Adjustable desk stand Advanced Encryption Standard (AES) support

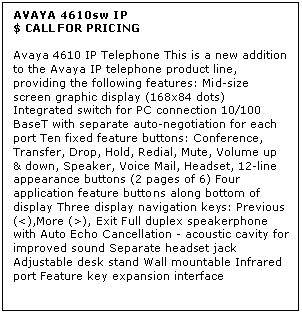

Text Box: AVAYA 4610sw IP $ CALL FOR PRICING Avaya 4610 IP Telephone This is a new addition to the Avaya IP telephone product line, providing the following features: Mid-size screen graphic display (168x84 dots) Integrated switch for PC connection 10/100 BaseT with separate auto-negotiation for each port Ten fixed feature buttons: Conference, Transfer, Drop, Hold, Redial, Mute, Volume up & down, Speaker, Voice Mail, Headset, 12-line appearance buttons (2 pages of 6) Four application feature buttons along bottom of display Three display navigation keys: Previous (<),More (>), Exit Full duplex speakerphone with Auto Echo Cancellation - acoustic cavity for improved sound Separate headset jack Adjustable desk stand Wall mountable Infrared port Feature key expansion interface

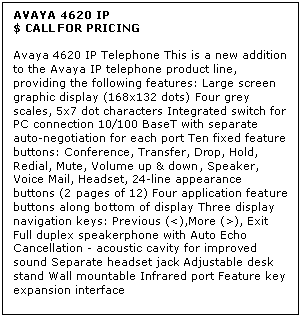

Text Box: AVAYA 4620 IP $ CALL FOR PRICING Avaya 4620 IP Telephone This is a new addition to the Avaya IP telephone product line, providing the following features: Large screen graphic display (168x132 dots) Four grey scales, 5x7 dot characters Integrated switch for PC connection 10/100 BaseT with separate auto-negotiation for each port Ten fixed feature buttons: Conference, Transfer, Drop, Hold, Redial, Mute, Volume up & down, Speaker, Voice Mail, Headset, 24-line appearance buttons (2 pages of 12) Four application feature buttons along bottom of display Three display navigation keys: Previous (<),More (>), Exit Full duplex speakerphone with Auto Echo Cancellation - acoustic cavity for improved sound Separate headset jack Adjustable desk stand Wall mountable Infrared port Feature key expansion interface

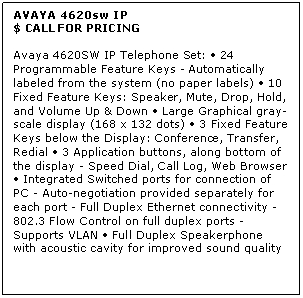

Text Box: AVAYA 4620sw IP $ CALL FOR PRICING Avaya 4620SW IP Telephone Set: • 24 Programmable Feature Keys - Automatically labeled from the system (no paper labels) • 10 Fixed Feature Keys: Speaker, Mute, Drop, Hold, and Volume Up & Down • Large Graphical gray-scale display (168 x 132 dots) • 3 Fixed Feature Keys below the Display: Conference, Transfer, Redial • 3 Application buttons, along bottom of the display - Speed Dial, Call Log, Web Browser • Integrated Switched ports for connection of PC - Auto-negotiation provided separately for each port - Full Duplex Ethernet connectivity - 802.3 Flow Control on full duplex ports - Supports VLAN • Full Duplex Speakerphone with acoustic cavity for improved sound quality

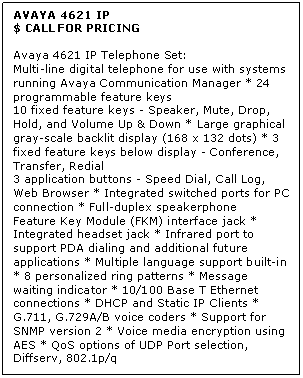

Text Box: AVAYA 4621 IP $ CALL FOR PRICING Avaya 4621 IP Telephone Set: Multi-line digital telephone for use with systems running Avaya Communication Manager * 24 programmable feature keys 10 fixed feature keys - Speaker, Mute, Drop, Hold, and Volume Up & Down * Large graphical gray-scale backlit display (168 x 132 dots) * 3 fixed feature keys below display - Conference, Transfer, Redial 3 application buttons - Speed Dial, Call Log, Web Browser * Integrated switched ports for PC connection * Full-duplex speakerphone Feature Key Module (FKM) interface jack * Integrated headset jack * Infrared port to support PDA dialing and additional future applications * Multiple language support built-in * 8 personalized ring patterns * Message waiting indicator * 10/100 Base T Ethernet connections * DHCP and Static IP Clients * G.711, G.729A/B voice coders * Support for SNMP version 2 * Voice media encryption using AES * QoS options of UDP Port selection, Diffserv, 802.1p/q

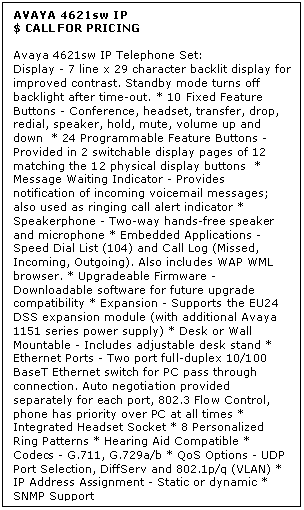

Text Box: AVAYA 4621sw IP $ CALL FOR PRICING Avaya 4621sw IP Telephone Set: Display - 7 line x 29 character backlit display for improved contrast. Standby mode turns off backlight after time-out. * 10 Fixed Feature Buttons - Conference, headset, transfer, drop, redial, speaker, hold, mute, volume up and down * 24 Programmable Feature Buttons - Provided in 2 switchable display pages of 12 matching the 12 physical display buttons * Message Waiting Indicator - Provides notification of incoming voicemail messages; also used as ringing call alert indicator * Speakerphone - Two-way hands-free speaker and microphone * Embedded Applications - Speed Dial List (104) and Call Log (Missed, Incoming, Outgoing). Also includes WAP WML browser. * Upgradeable Firmware - Downloadable software for future upgrade compatibility * Expansion - Supports the EU24 DSS expansion module (with additional Avaya 1151 series power supply) * Desk or Wall Mountable - Includes adjustable desk stand * Ethernet Ports - Two port full-duplex 10/100 BaseT Ethernet switch for PC pass through connection. Auto negotiation provided separately for each port, 802.3 Flow Control, phone has priority over PC at all times * Integrated Headset Socket * 8 Personalized Ring Patterns * Hearing Aid Compatible * Codecs - G.711, G.729a/b * QoS Options - UDP Port Selection, DiffServ and 802.1p/q (VLAN) * IP Address Assignment - Static or dynamic * SNMP Support

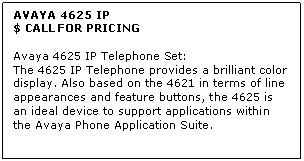

Text Box: AVAYA 4625 IP $ CALL FOR PRICING Avaya 4625 IP Telephone Set: The 4625 IP Telephone provides a brilliant color display. Also based on the 4621 in terms of line appearances and feature buttons, the 4625 is an ideal device to support applications within the Avaya Phone Application Suite.

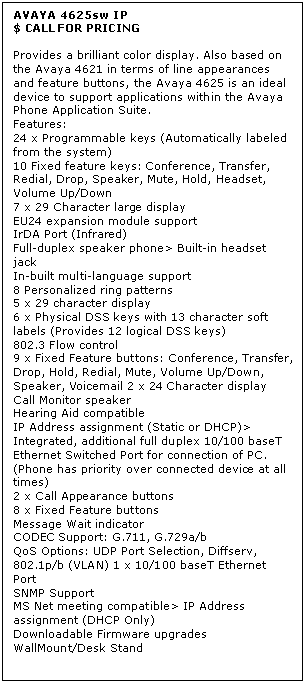

Text Box: AVAYA 4625sw IP $ CALL FOR PRICING Provides a brilliant color display. Also based on the Avaya 4621 in terms of line appearances and feature buttons, the Avaya 4625 is an ideal device to support applications within the Avaya Phone Application Suite. Features: 24 x Programmable keys (Automatically labeled from the system) 10 Fixed feature keys: Conference, Transfer, Redial, Drop, Speaker, Mute, Hold, Headset, Volume Up/Down 7 x 29 Character large display EU24 expansion module support IrDA Port (Infrared) Full-duplex speaker phone> Built-in headset jack In-built multi-language support 8 Personalized ring patterns 5 x 29 character display 6 x Physical DSS keys with 13 character soft labels (Provides 12 logical DSS keys) 802.3 Flow control 9 x Fixed Feature buttons: Conference, Transfer, Drop, Hold, Redial, Mute, Volume Up/Down, Speaker, Voicemail 2 x 24 Character display Call Monitor speaker Hearing Aid compatible IP Address assignment (Static or DHCP)> Integrated, additional full duplex 10/100 baseT Ethernet Switched Port for connection of PC. (Phone has priority over connected device at all times) 2 x Call Appearance buttons 8 x Fixed Feature buttons Message Wait indicator CODEC Support: G.711, G.729a/b QoS Options: UDP Port Selection, Diffserv, 802.1p/b (VLAN) 1 x 10/100 baseT Ethernet Port SNMP Support MS Net meeting compatible> IP Address assignment (DHCP Only) Downloadable Firmware upgrades WallMount/Desk Stand

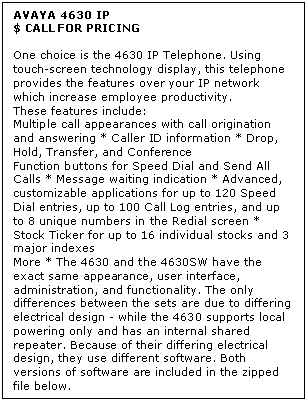

Text Box: AVAYA 4630 IP $ CALL FOR PRICING One choice is the 4630 IP Telephone. Using touch-screen technology display, this telephone provides the features over your IP network which increase employee productivity. These features include: Multiple call appearances with call origination and answering * Caller ID information * Drop, Hold, Transfer, and Conference Function buttons for Speed Dial and Send All Calls * Message waiting indication * Advanced, customizable applications for up to 120 Speed Dial entries, up to 100 Call Log entries, and up to 8 unique numbers in the Redial screen * Stock Ticker for up to 16 individual stocks and 3 major indexes More * The 4630 and the 4630SW have the exact same appearance, user interface, administration, and functionality. The only differences between the sets are due to differing electrical design - while the 4630 supports local powering only and has an internal shared repeater. Because of their differing electrical design, they use different software. Both versions of software are included in the zipped file below.

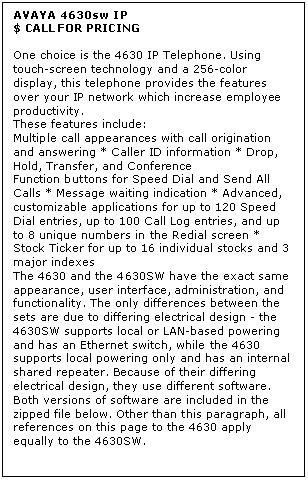

Text Box: AVAYA 4630sw IP $ CALL FOR PRICING One choice is the 4630 IP Telephone. Using touch-screen technology and a 256-color display, this telephone provides the features over your IP network which increase employee productivity. These features include: Multiple call appearances with call origination and answering * Caller ID information * Drop, Hold, Transfer, and Conference Function buttons for Speed Dial and Send All Calls * Message waiting indication * Advanced, customizable applications for up to 120 Speed Dial entries, up to 100 Call Log entries, and up to 8 unique numbers in the Redial screen * Stock Ticker for up to 16 individual stocks and 3 major indexes The 4630 and the 4630SW have the exact same appearance, user interface, administration, and functionality. The only differences between the sets are due to differing electrical design - the 4630SW supports local or LAN-based powering and has an Ethernet switch, while the 4630 supports local powering only and has an internal shared repeater. Because of their differing electrical design, they use different software. Both versions of software are included in the zipped file below. Other than this paragraph, all references on this page to the 4630 apply equally to the 4630SW.

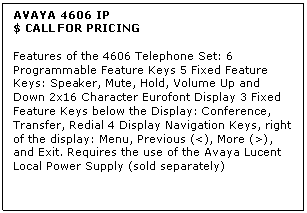

Text Box: AVAYA 4606 IP $ CALL FOR PRICING Features of the 4606 Telephone Set: 6 Programmable Feature Keys 5 Fixed Feature Keys: Speaker, Mute, Hold, Volume Up and Down 2x16 Character Eurofont Display 3 Fixed Feature Keys below the Display: Conference, Transfer, Redial 4 Display Navigation Keys, right of the display: Menu, Previous (<), More (>), and Exit. Requires the use of the Avaya Lucent Local Power Supply (sold separately)

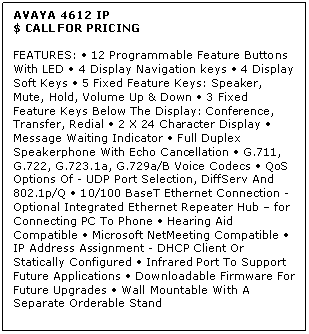

Text Box: AVAYA 4612 IP $ CALL FOR PRICING FEATURES: • 12 Programmable Feature Buttons With LED • 4 Display Navigation keys • 4 Display Soft Keys • 5 Fixed Feature Keys: Speaker, Mute, Hold, Volume Up & Down • 3 Fixed Feature Keys Below The Display: Conference, Transfer, Redial • 2 X 24 Character Display • Message Waiting Indicator • Full Duplex Speakerphone With Echo Cancellation • G.711, G.722, G.723.1a, G.729a/B Voice Codecs • QoS Options Of - UDP Port Selection, DiffServ And 802.1p/Q • 10/100 BaseT Ethernet Connection - Optional Integrated Ethernet Repeater Hub – for Connecting PC To Phone • Hearing Aid Compatible • Microsoft NetMeeting Compatible • IP Address Assignment - DHCP Client Or Statically Configured • Infrared Port To Support Future Applications • Downloadable Firmware For Future Upgrades • Wall Mountable With A Separate Orderable Stand

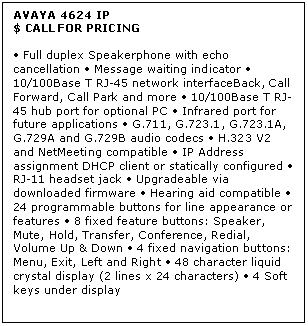

Text Box: AVAYA 4624 IP $ CALL FOR PRICING • Full duplex Speakerphone with echo cancellation • Message waiting indicator • 10/100Base T RJ-45 network interfaceBack, Call Forward, Call Park and more • 10/100Base T RJ-45 hub port for optional PC • Infrared port for future applications • G.711, G.723.1, G.723.1A, G.729A and G.729B audio codecs • H.323 V2 and NetMeeting compatible • IP Address assignment DHCP client or statically configured • RJ-11 headset jack • Upgradeable via downloaded firmware • Hearing aid compatible • 24 programmable buttons for line appearance or features • 8 fixed feature buttons: Speaker, Mute, Hold, Transfer, Conference, Redial, Volume Up & Down • 4 fixed navigation buttons: Menu, Exit, Left and Right • 48 character liquid crystal display (2 lines x 24 characters) • 4 Soft keys under display
